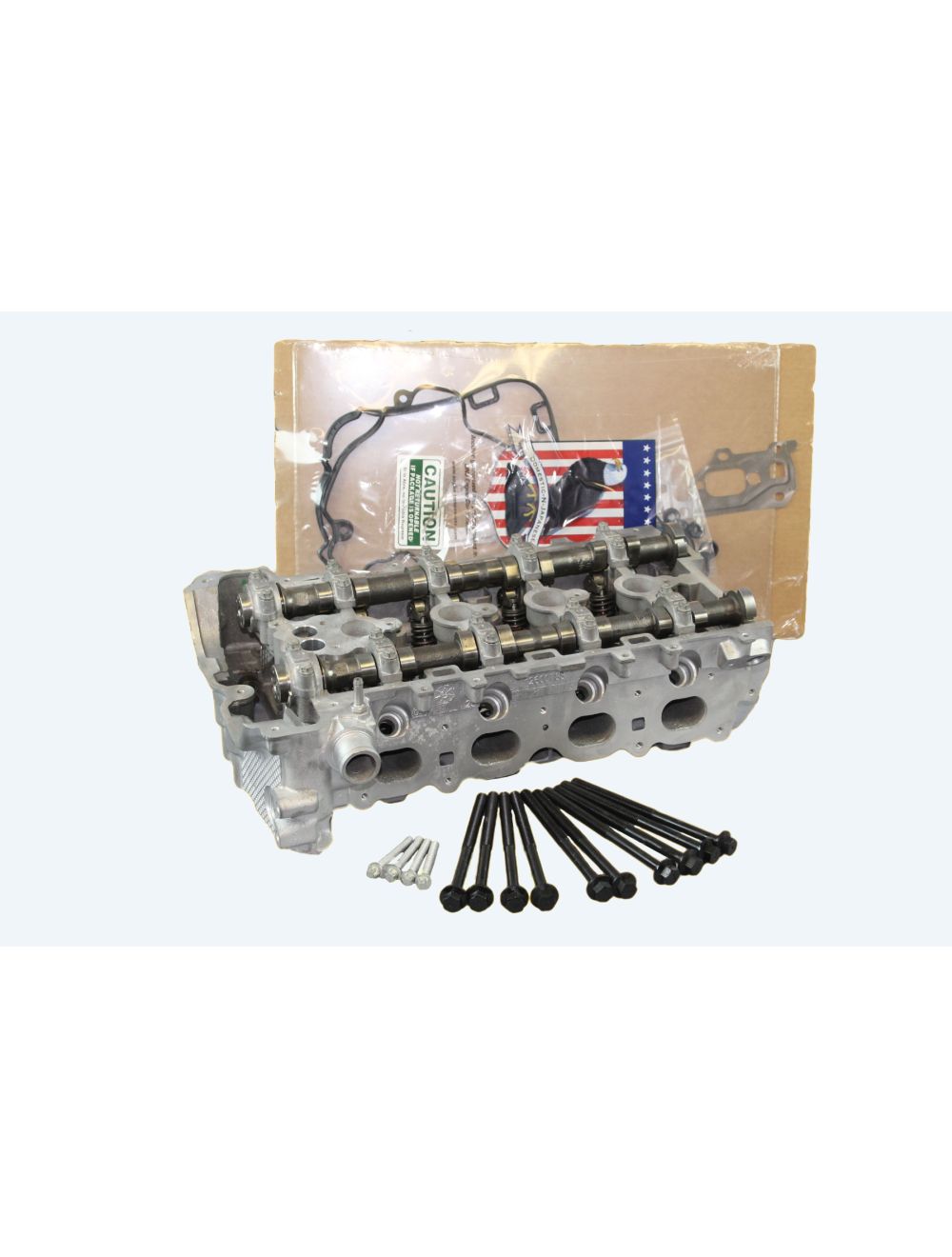

Chevy 2.2 / 2.4 DOHC ECOTEC Malibu Cobalt G5 Cylinder Head 12600788 with Gasket Set & Head Bolts 2006 - 2019
Vehicles & Years Applicable::
LAP engine (FEDERAL emissions):
2009 - 2010 Chevrolet Cobalt
2009 Pontiac G5
LE8 engine (FEDERAL emissions):
2009 - 2011 Chevrolet HHR
LE5 engine (EARLY; FEDERAL)
2006 - 2007 Chevrolet Cobalt SS
2006 - 2007 Saturn Ion 3
2006 - 2008 Chevrolet HHR
2006 - 2008 Pontiac G6
2006 - 2008 Pontiac Solstice
2007 - 2008 Pontiac G5 GT
2007 - 2008 Saturn Sky
2008 Chevrolet Cobalt Sport/Aura/Vue/Malibu
LAT engine (EARLY; FEDERAL)
2007 - 2008 Saturn Vue Green Line & Aura Green Line
2008 Chevrolet Malibu Hybrid
LE5 engine (LATE; FEDERAL emissions)
2009 Saturn Aura
2009 - 2010 Saturn Sky
2009 - 2010 Saturn Vue
2009 - 2010 Pontiac G6
2009 Pontiac Solstice
LE9 engine (FEDERAL emissions)
2009 -2011 Chevrolet HHR
2009 - 2012 Chevrolet Malibu
2014 - 2019 Polaris Slingshot
LAT engine (LATE; FEDERAL emissions)
2009 Saturn Vue Hybrid
2009 Saturn Aura Hybrid
2009 Chevrolet Malibu Hybrid
WE NEED THE FOLLOWING INFO BEFORE WE CAN SHIP:
1) CAMSHAFT CASTING NUMBERS
2) VIN
Machine Work Performed:
- Complete disassembly and thorough cleaning via hot tank
- Pressure tested to ensure casting is not cracked
- New valve stem seals and valve guides
- 3-angle grind valve job on all valve seats & vacuum tested to ensure perfect compression.
- PCD milled to ensure super smooth finish. (PCD stands for Polycrystalline Diamond, is best for aluminum heads).
- All parts are cleaned and inspected before final assembly to meet AERA specifications.
NO UPFRONT CORE CHARGE
CORE RETURN REQUIRED WITHIN 21 DAYS OF DELIVERY
PREPAID RETURN LABEL(S) PROVIDED
FAILURE TO RETURN CORE(S) WILL RESULT IN $350 CORE CHARGE PER CORE & COLLECTIONS FEES
**CORES MUST MATCH THE HEADS PURCHASED**
**NO CAM SEALS HAVE BEEN INSTALLED ON ANY OF OUR HEADS**
WARRANTY
ADV Cylinder Heads offers a 3 Year Unlimited Mile Warranty on all cylinder heads sold, except on High Performance heads. We ask that when installing the cylinder head make sure you are using the recommended head gasket as the manufacturer requires. You may also order the headset along with your cylinder head. Please make sure that the cooling system is in place and that the hoses, water pump, thermostat, and radiator are in GOOD working condition. Please understand that we are just selling the cylinder head and if any other part in the vehicle is old or damaged it can and will cause harm, or overheat the cylinder head. Every head sold will come with Heat Tabs which if removed will VOID your warranty. This heat tab’s center will melt if the cylinder head overheated, causing the warranty to be VOID. FAILURE TO RETURN YOUR CORE(S) WILL VOID WARRANTY. WARRANTY DOES NOT COVER ANY LABOR AND/ OR ADDITIONAL COSTS.
